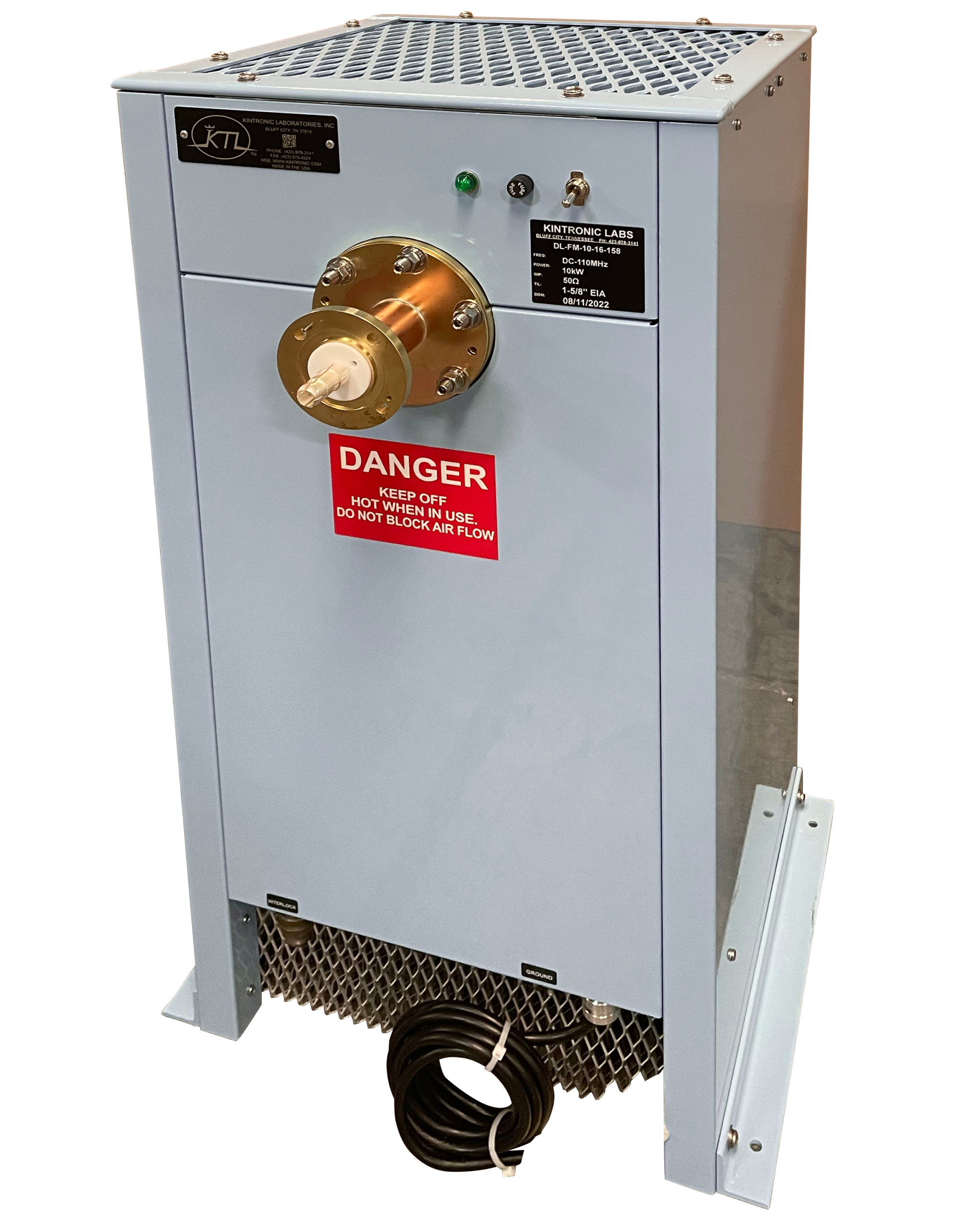

10kW FM Dummy Load

$0.00

10kW FM Dummy Load for operation in the AM*, HF/Shortwave and FM bands.

Frequency: DC-110 MHz
VSWR: 1.1:1 Max.
Power: 10 kW continuous
Ambient: -20 to +104 degrees F
Input: 3-1/8, 1-5/8
Weight: 75 LBS
Dimensions: 19”W x 19”D x 35”H
(48cm W x 48cm D x 89cm H)
Operating Position: Upright Only
Air Flow: 580 CFM
AC Power: 115 VAC 5A 60Hz
(50 Hz optional extra)
Temperature Interlocked
Reject Load Option Available

*AM transmitters must be matched with a load that can handle the full carrier output, PLUS modulation.

Description

10kW FM Dummy Load

Kintronic Labs’ 10kW FM Dummy Load is a dry, forced air cooled load with a 10 kW continuous power rating designed for frequency range DC – 110 MHz.

NOTE to Broadcasters: AM transmitters must be matched with a load that can handle the full carrier output, PLUS modulation. For FM use, only the carrier output power needs to be considered.
