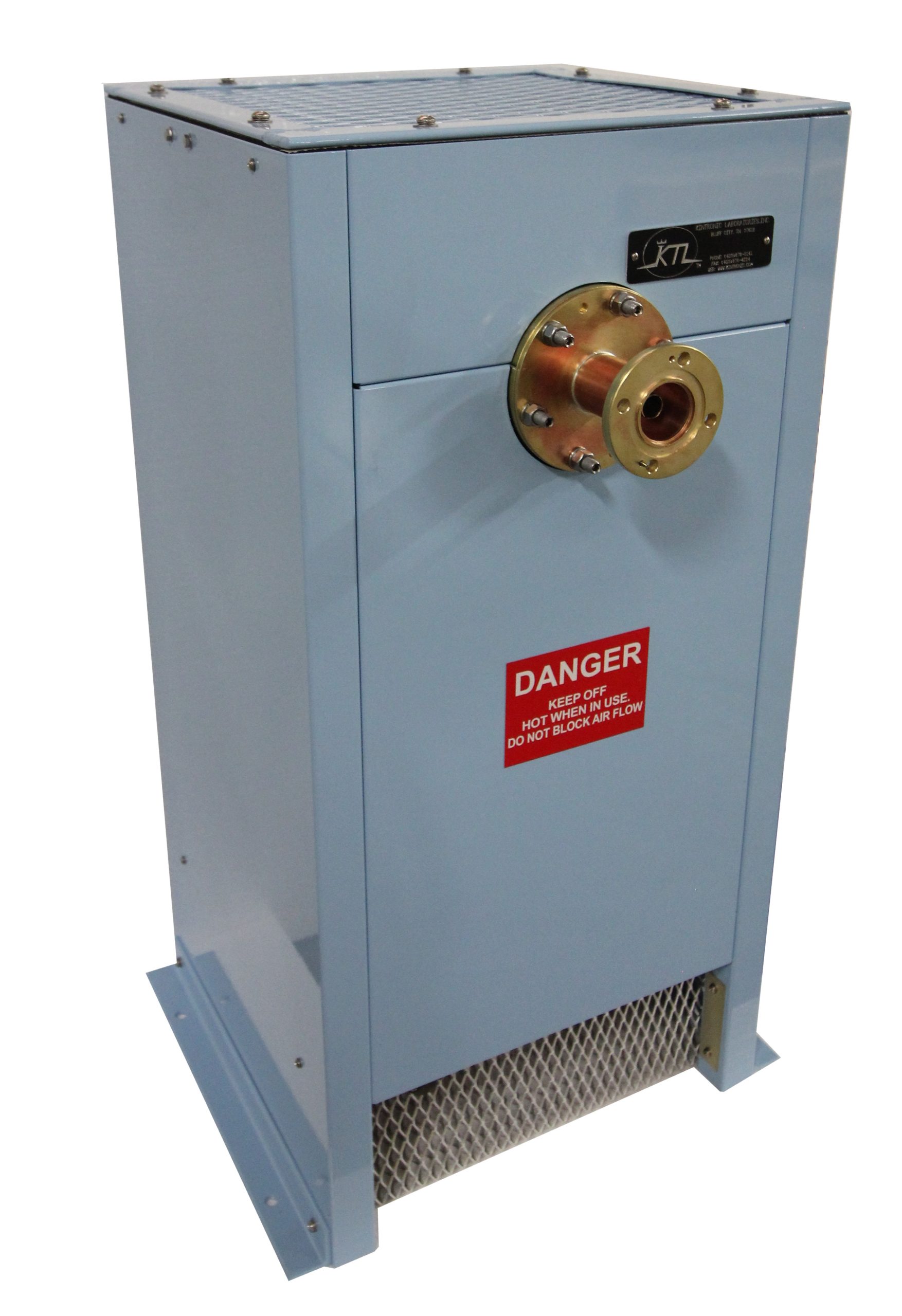

5/7.5kW FM Dummy Load

$0.00

5/7.5kW FM Dummy Load for operation in the AM*, HF/Shortwave and FM bands. The 7.5kW continuous power rating is limited to 30 minutes on/30 minutes off.

Frequency: DC – 110 MHz
VSWR: 1.1:1 Max.
Power: 5 kW continuous; 7.5 kW intermittent**
Ambient: -20 to +104 degrees F
Input: 1-5/8, 3-1/8
Weight: 65 LBS
Dimensions: 21”W x 21”D x 35”H
(54cm W x 54cm D x 89cm H)
Operating Position: Upright only
Overtemp Interlock Available

*AM transmitters must be matched with a load that can handle the full carrier output, PLUS modulation.

**7.5 kW continuous average power limited to 30 minutes on/30 minutes off

Description

5/7.5kW FM Dummy Load

Kintronic Labs’ 5/7.5kW FM Dummy Load is a dry, forced air cooled load with a 5 kW continuous power rating designed for frequency range DC – 110 MHz. The 7.5kW continuous power rating is limited to 30 minutes on/30 minutes off.

NOTE to Broadcasters: AM transmitters must be matched with a load that can handle the full carrier output, PLUS modulation. For FM use, only the carrier output power needs to be considered.
