Sentech Diplexer Installed by LS of SA

KTL Wideband Diplexer Unit Commissioned in South Africa

Broadcom International recently released a report on the commissioning of a diplexer supplied by LS Telcom of South Africa for the Sentech MW site in Welgedacht, South Africa. Kintronic Labs supplied the DRM-capable antenna system consisting of the diplexing unit for the operation of 2×50 kW operating frequencies (540 kHz and 702 kHz) connected to a 126 m triangular guyed lattice mast fitted with a 6-wire rhombic feed skirt attached at the top of the antenna mast.

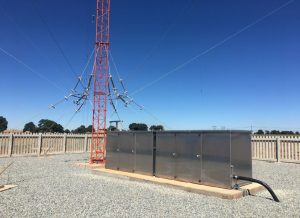

Sentech Welgedacht Diplexer Installation

The customer noted exceptional agreement between the predicted performance of the antenna system and the actual as-built performance. This is another demonstration of the relatively flat input impedance characteristics resulting from the use of a rhombic skirt-fed mast.
